Great For
ROOFS
RESIDENTIAL
COMMERCIAL

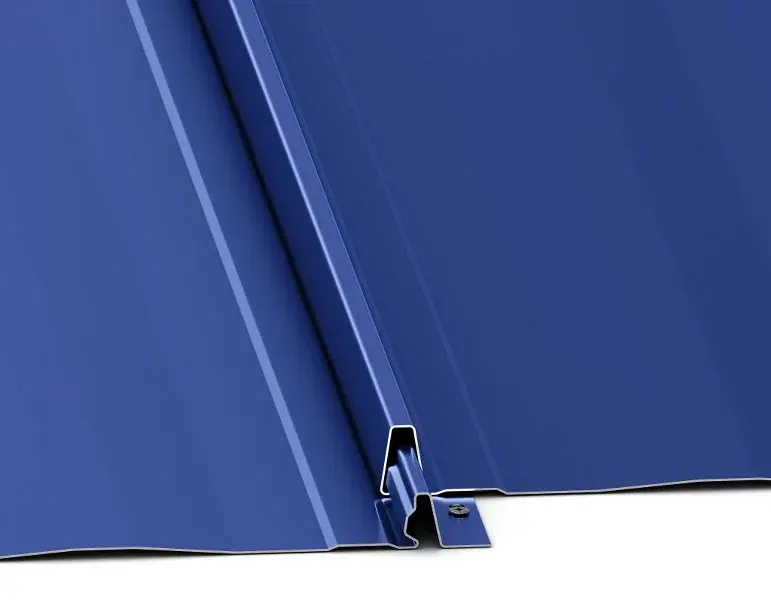

The 1.0 CM3-S-LOC panel delivers the timeless look of a standing seam roof with the convenience of a modern snap-lock system. Designed with a 1" seam height and screw flange fastening, it installs quickly without clips, making it both economical and efficient.
Perfect for residential or commercial projects, this panel offers clean architectural lines, long-lasting performance, and simplified installation. With its concealed fasteners and precision engineering, the 1.0 CM3-S-LOC is built to perform beautifully, year after year.

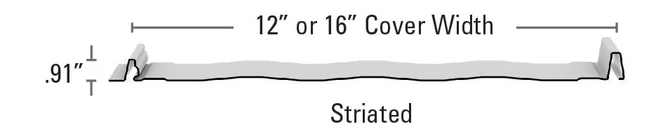

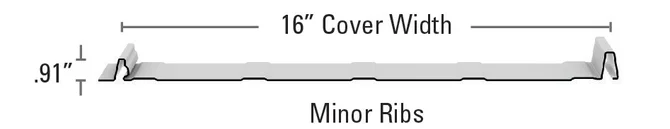

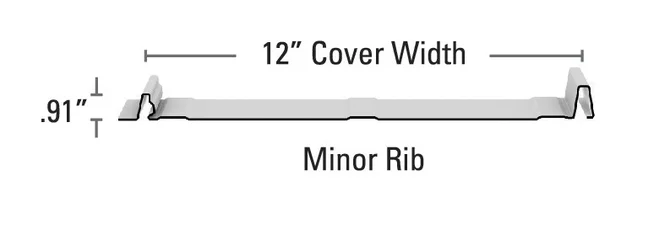

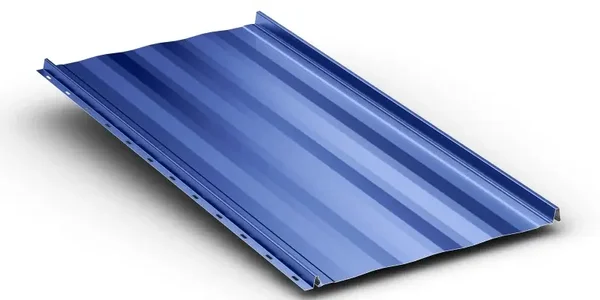

Rendering & Profiles
No items found.
No items found.
Specifications & Details
Details

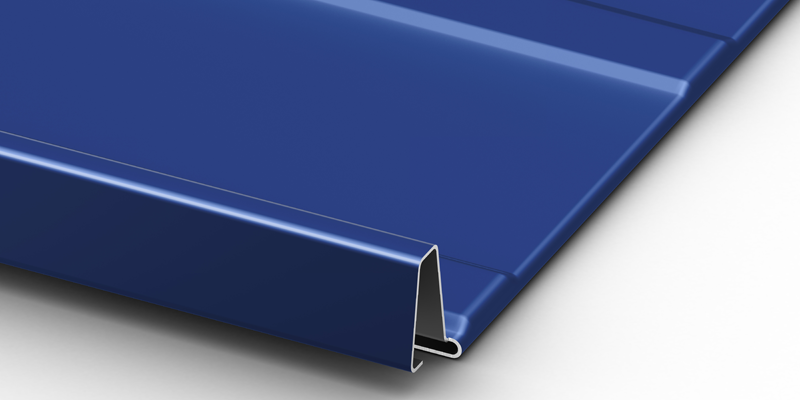

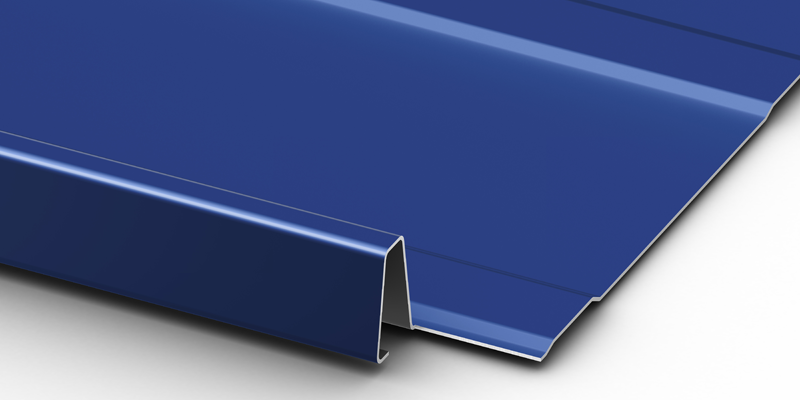

Factory formed eave notch
Available upon request
Minimum slope
3:12
Installation
Must be over solid deck
Manufacturing Facilities
Clinton, IL; Peachtree City, GA; Adelanto, CA; Sunnyvale, TX
Note
Oil Canning is a natural occurrence in metal panels and is not cause for panel rejection
Panel Options
Panel width
12" and 16"
Panel configurations
- 16" Minor Ribs or Striated
- 12" Minor Ribs or Striated
Coating
Kynar 500® (PVDF)
Substrate
- Standard 26 GA Galvalume® 16" only
- Standard 24 GA Galvalume® 12" and 16"
