Great For
ROOFS
RESIDENTIAL
COMMERCIAL
The 2.0 CM3-M-LOC is a premium, mechanically seamed standing seam roof panel engineered with a 2" vertical leg height and clip system for outstanding structural strength and long-term durability. Designed to balance architectural aesthetics with superior performance, this panel delivers exceptional weather resistance and a refined, modern look. Available in lengths from short runs to extended spans, the 2.0 CM3-M-LOC adapts to a wide range of substrates and project requirements. It performs reliably on roof pitches as low as ½:12 and can also be factory curved for unique radius applications. Offered in multiple finishes and materials, this system provides architects and contractors the flexibility to achieve both form and function without compromise. With CM3 Metal’s advanced manufacturing and finishing options, architects and contractors can customize the 2.0 CM3-M-LOC to meet unique project specifications while ensuring aesthetics never compromise performance.

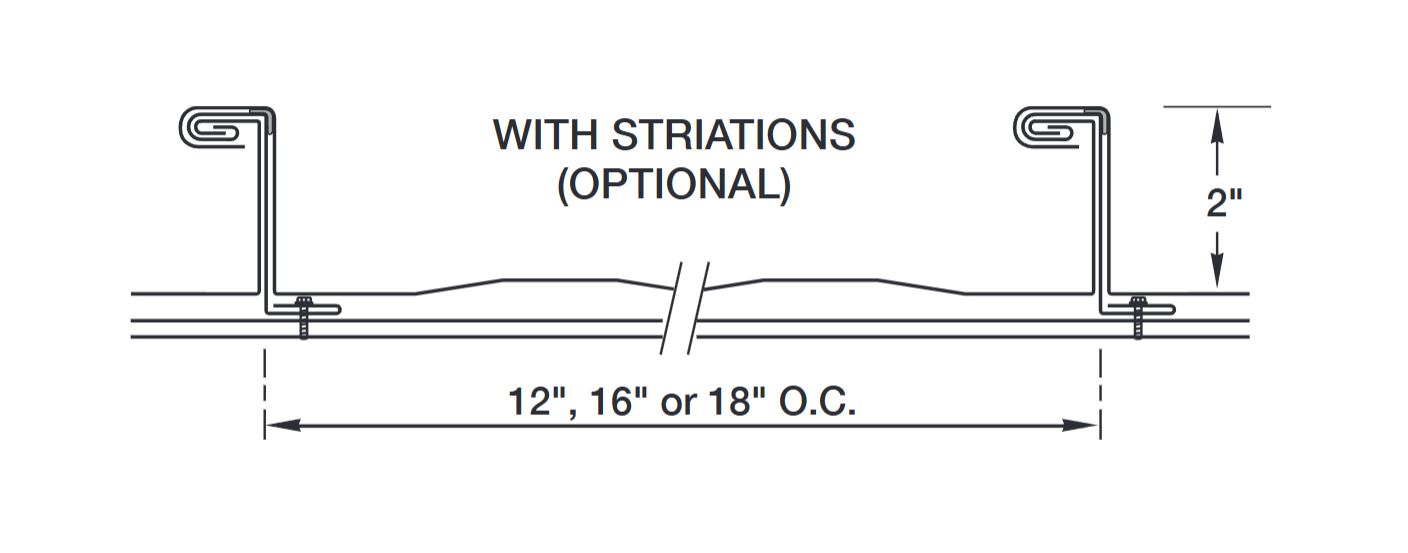

Rendering & Profiles
No items found.
No items found.
Specifications & Details
Details
Installation
Can be installed over solid decking or open framing. Floating clips allow for thermal movement up to 3 1/8”.
Panel Lengths
- Maximum lengths available when field-formed
- Minimum panel length approximately 4’
Slope Requirements
- Minimum slope for 2.0” seam: 1/2:12
Weathertightness Warranty
Available upon request for qualifying projects.
Curving Capability

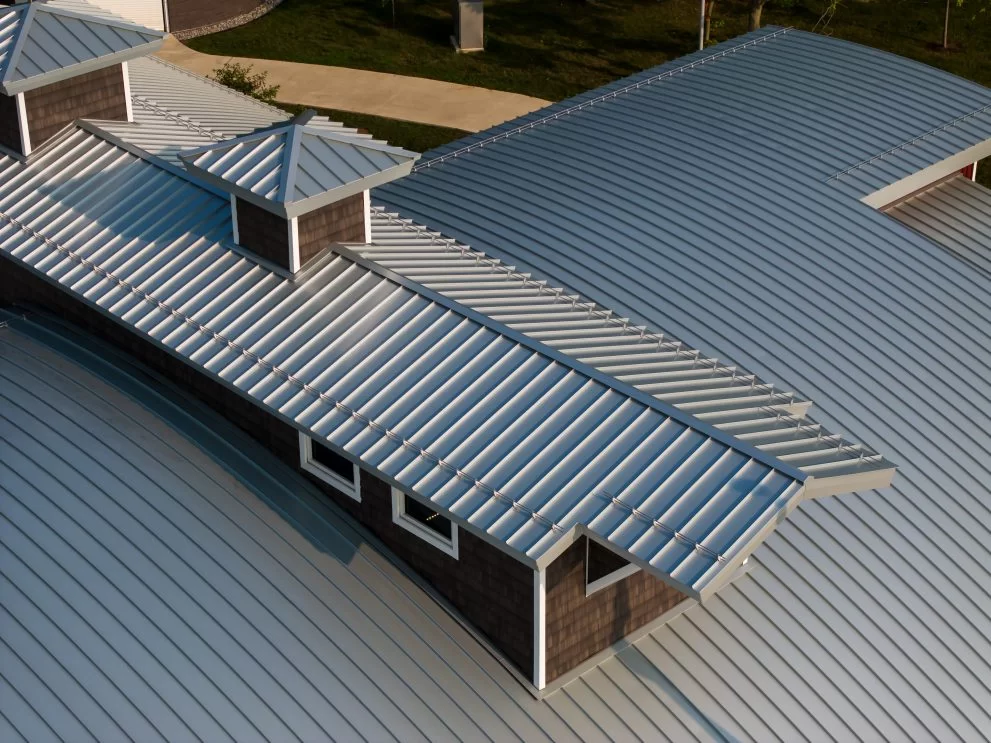

Select versions can be curved (consult CM3 Metal for radius and application requirements).
Manufacturing
Produced in multiple CM3 facilities to meet diverse project needs and regional availability.
Notes
Oil canning is a natural occurrence in metal panels and is not cause for panel rejection.
Panel Options
Panel Options
Seam Height
2.0” standing seam with mechanically seamed profile.
Seam Style

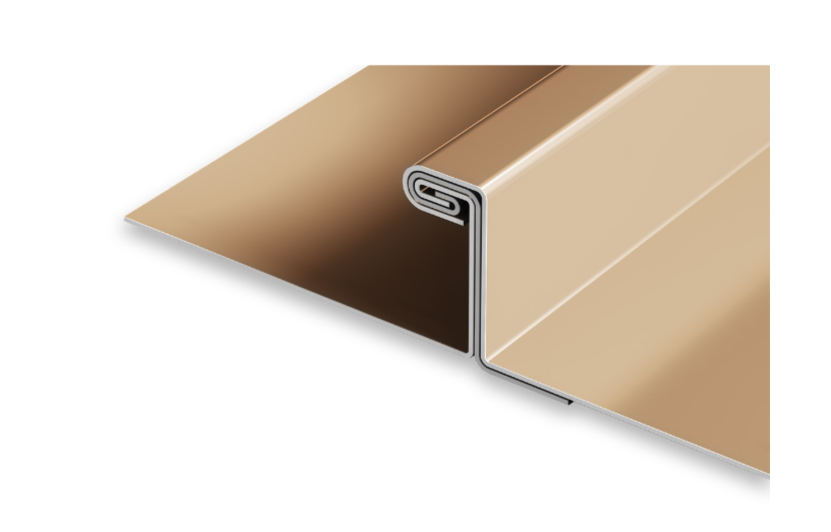

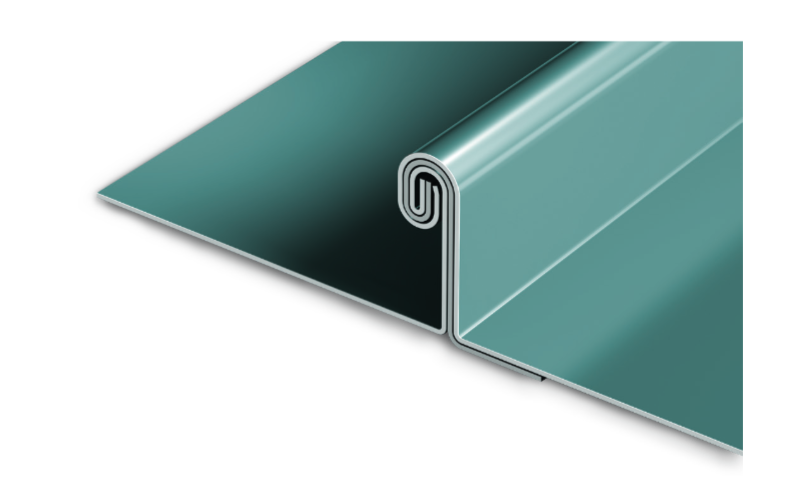

- 2.0” Seam: 90° mechanical seam for superior wind uplift resistance.
- Field-seamed for a watertight and secure connection.
Panel Widths
Available in 18” and 24” panel widths for flexible design applications.
Panel Configurations

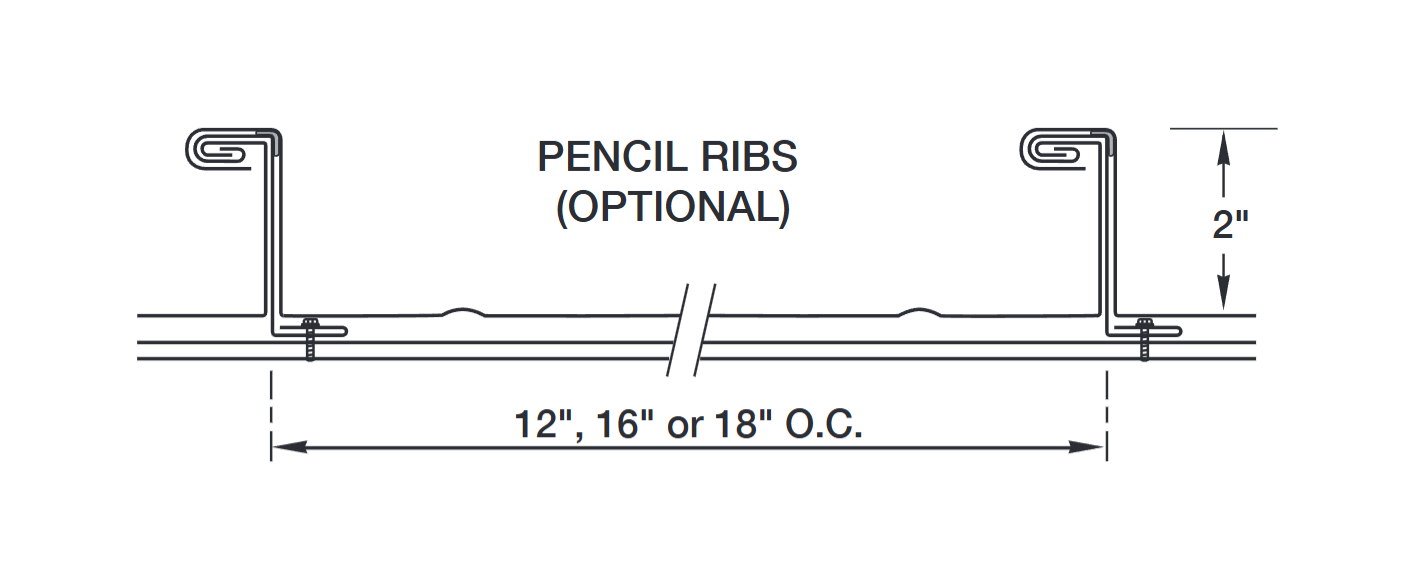

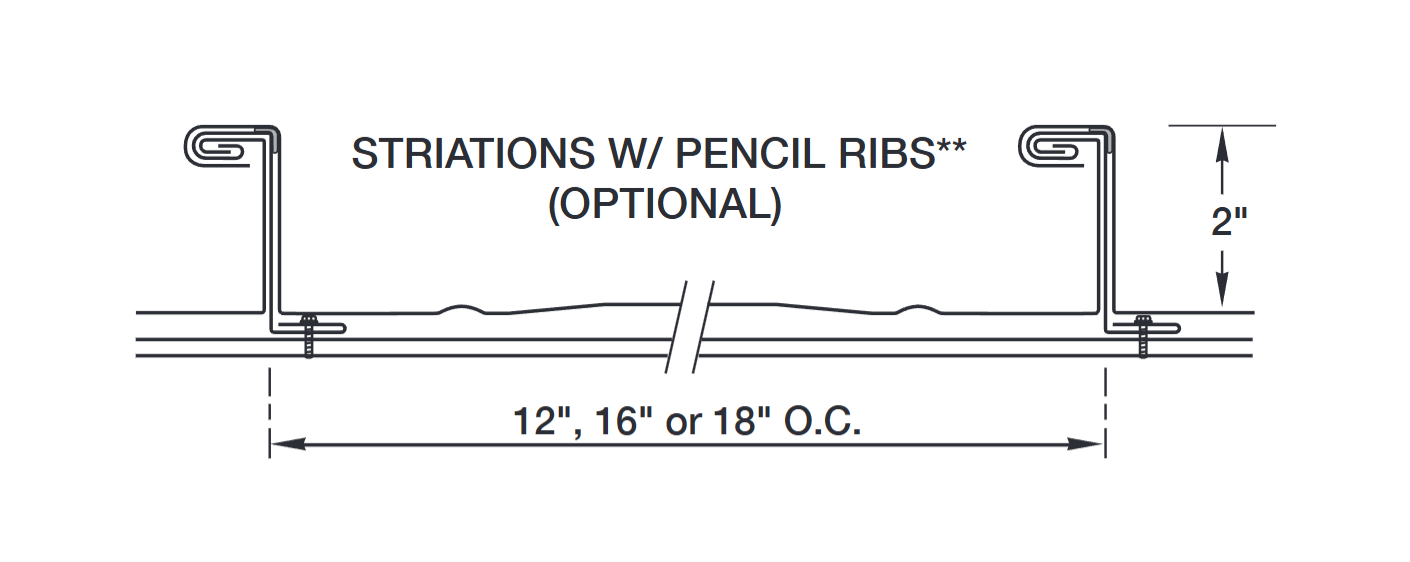

Flat, Striated, Pencil Ribs, or Minor Ribs (varies by width and application).
Coating
Premium Kynar 500® (PVDF) finish for exceptional color retention and long-term weather protection.
Substrate
- Standard: 24 GA Galvalume® steel
- Optional: 22 GA Galvalume® (subject to minimum orders and lead times)
- Optional: .032 and .040 aluminum (availability may vary)
