1.5 CM3-M-LOC

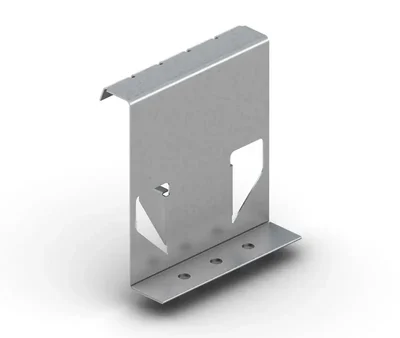

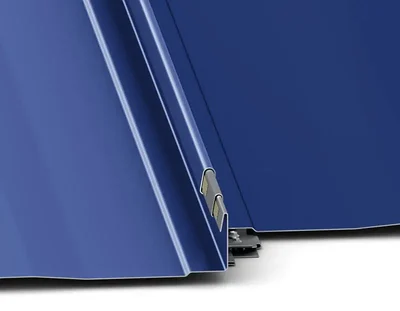

1.5” standing seam metal roof panel with mechanical seam, clip system

See Variants

No items found.

Great For

ROOFS

RESIDENTIAL

COMMERCIAL

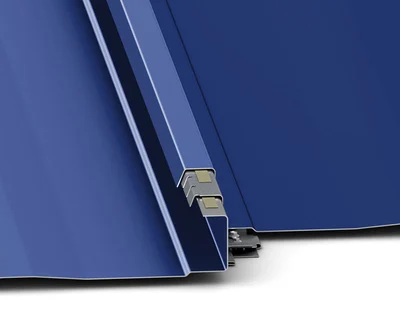

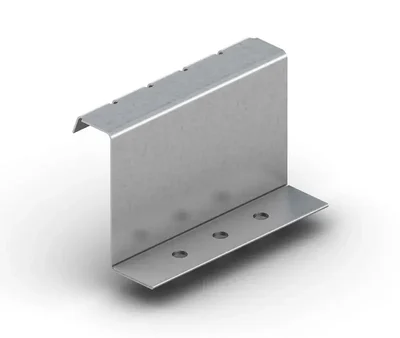

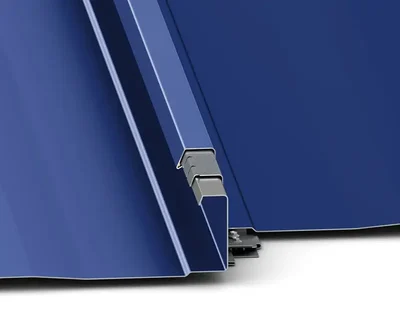

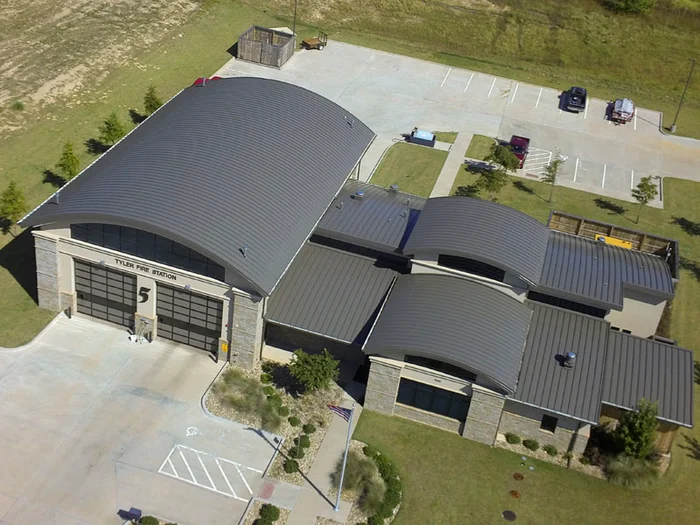

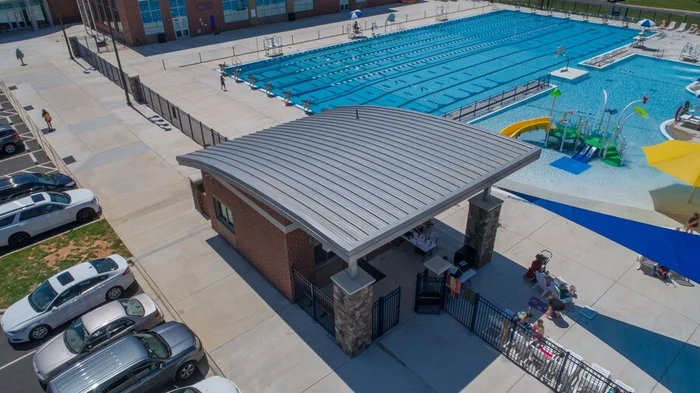

The 1.5 CM3-M-LOC is a high-performance, mechanically seamed standing seam metal roof panel designed for superior durability, weather resistance, and sleek architectural appeal. Featuring a clip system with a 1.5" vertical leg height, this panel delivers unmatched strength against wind uplift while maintaining a clean, modern profile. Engineered for flexibility, the 1.5 CM3-M-LOC can be factory curved for radius roof applications and is compatible with on-site fabrication, making installation efficient and precise. Its mechanical seam ensures long-lasting performance, ideal for both commercial and architectural projects demanding strength, style, and dependability. With CM3 Metal’s advanced manufacturing and finishing options, architects and contractors can customize the 1.5 CM3-M-LOC to meet unique project specifications while ensuring aesthetics never compromise performance.

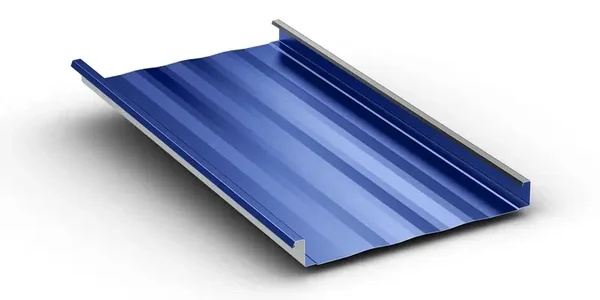

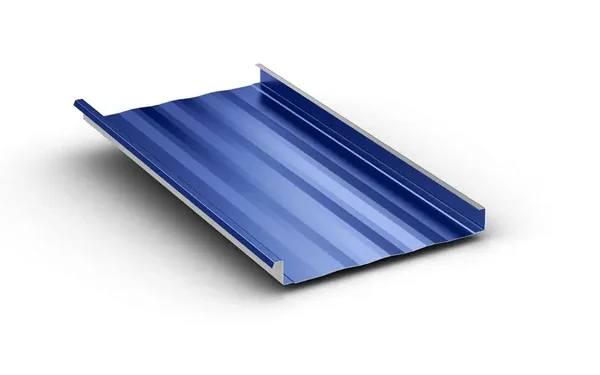

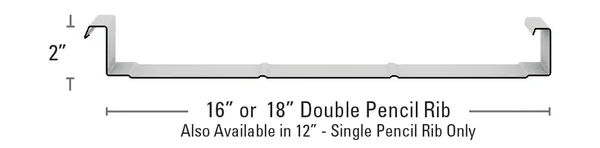

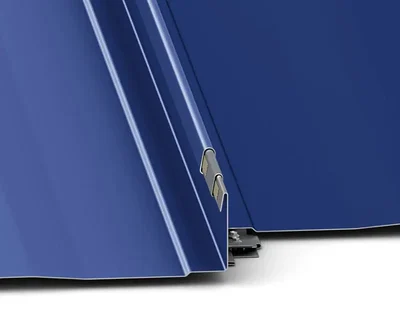

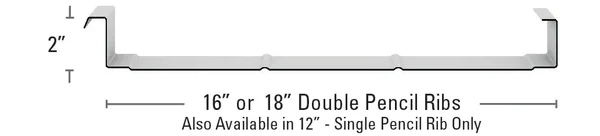

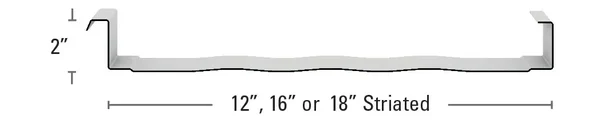

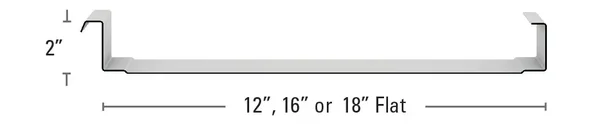

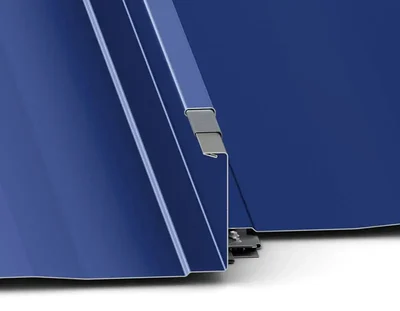

Rendering & Profiles

No items found.

Specifications & Details

Details

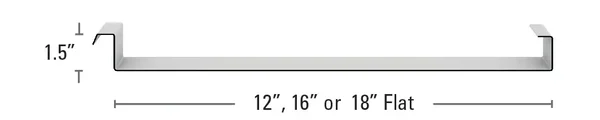

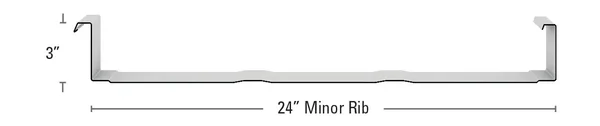

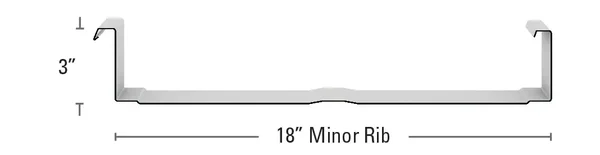

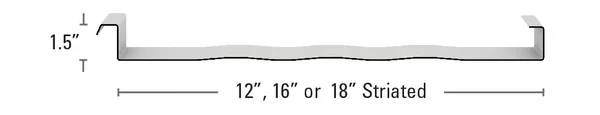

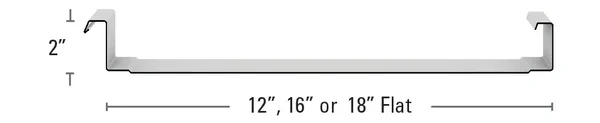

Profile

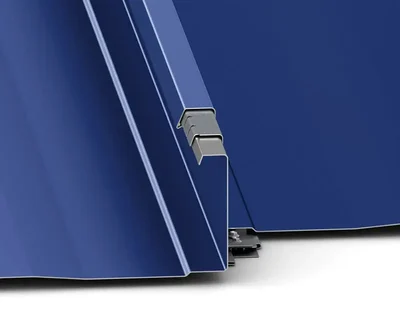

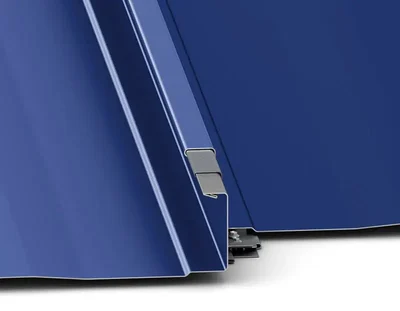

Mechanically seamed

Sealant

Factory applied (on non-curved panels only)

2" factory-formed eave notch

Upon request

Minimum slope for 1.5"

1:12

Minimum slope (for 2")

1/2:12

Minimum slope (for 3")

1/4:12

Installation

Can be installed over solid deck or open framing

Thermal Movement

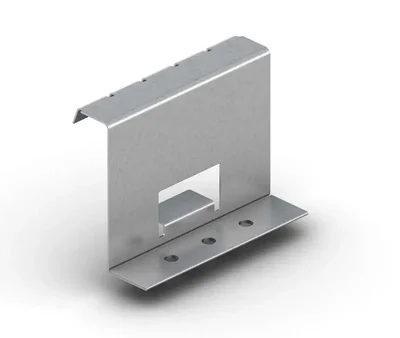

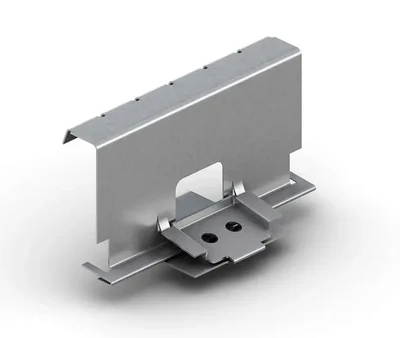

Floating clips allow for 3 1/8"

Note

Maxima 2" and ADV also available jobsite formed for long lengths

Manufacturing Facilities

Maxima1.5": Peachtree City, GA, Houston, TX
Maxima 2": Clinton, IL; Peachtree City, GA; Adelanto, CA; Sunnyvale, TX; Houston, TX
Maxima 3": Peachtree City, GA
Aluminum - Sunnyvale, TX only
