Great For
Rendering & Profiles
Specifications & Details
Details
Installation
Designed for use over solid decking or approved substrates, ensuring structural strength and durability.
Panel Lengths
- Factory-formed maximum length: 64’
- Field-formed: virtually unlimited
- Minimum panel length: 4’
Curving Capability

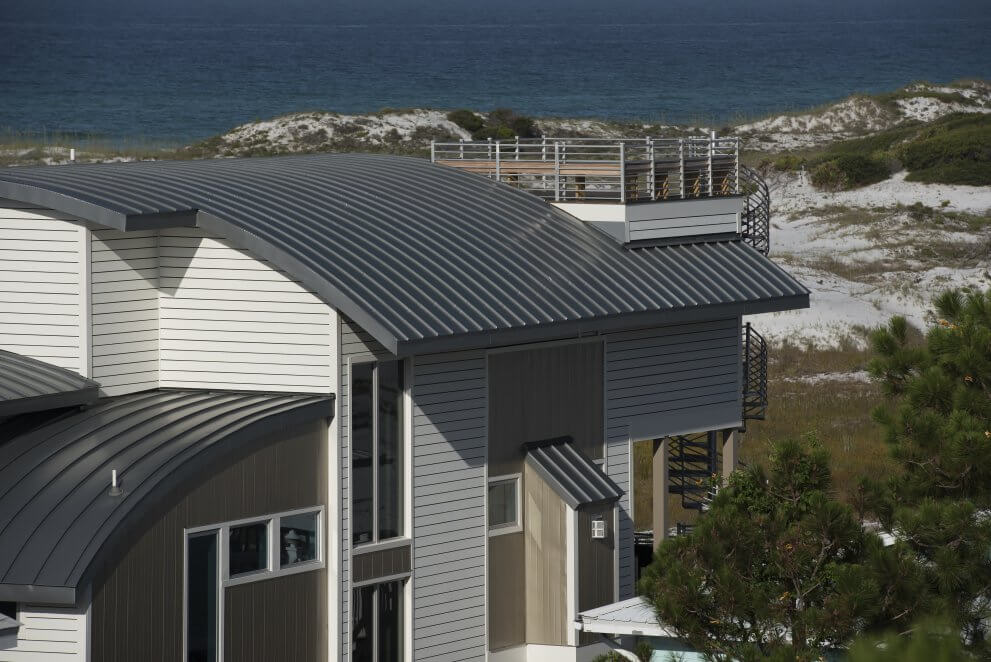

Panels can be curved to a minimum radius of 20’, with curving available in the field or factory depending on project needs.
Weathertightness Warranty
Available upon request for additional project assurance.
Manufacturing
Produced in multiple CM3 facilities to accommodate project demands and reduce lead times.
Notes
Oil canning is a natural occurrence in metal panels and is not cause for panel rejection.
Panel Options
Panel Widths
Available in 12”, 16”, 18”, and 20” options for design flexibility.
Panel Configurations

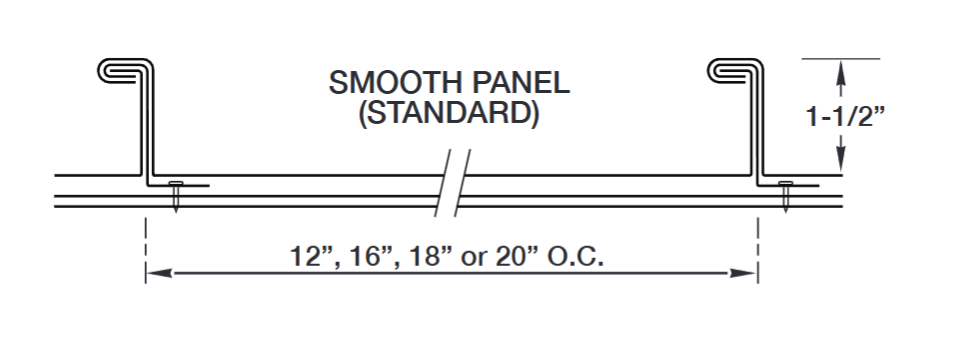

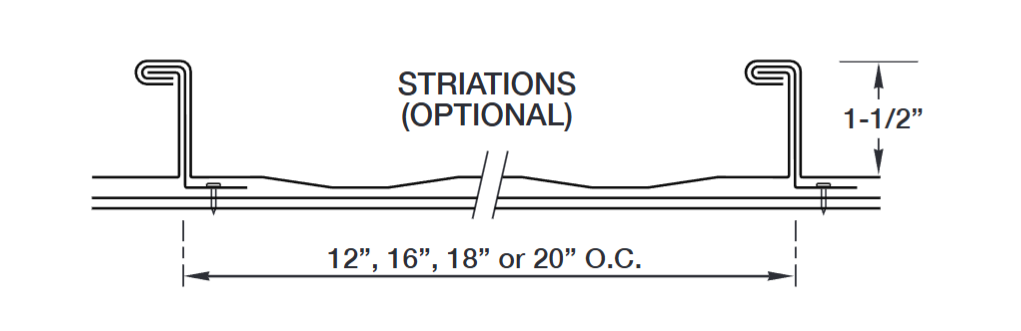

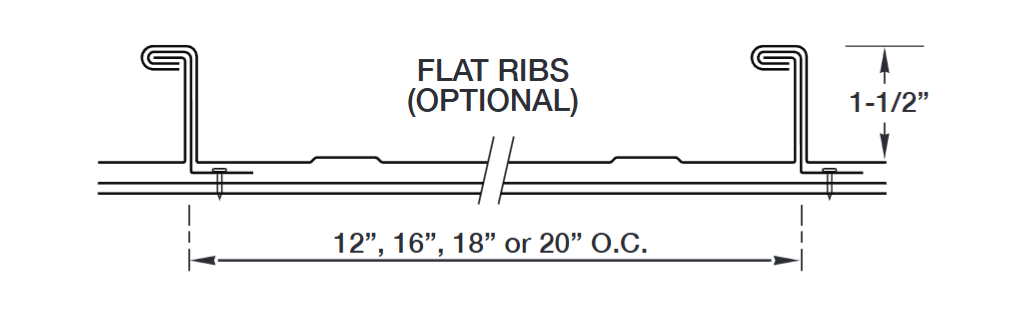

Choose from Smooth, Striated, Pencil Rib, or Flat Rib profiles to achieve the desired aesthetic.
Seam Height

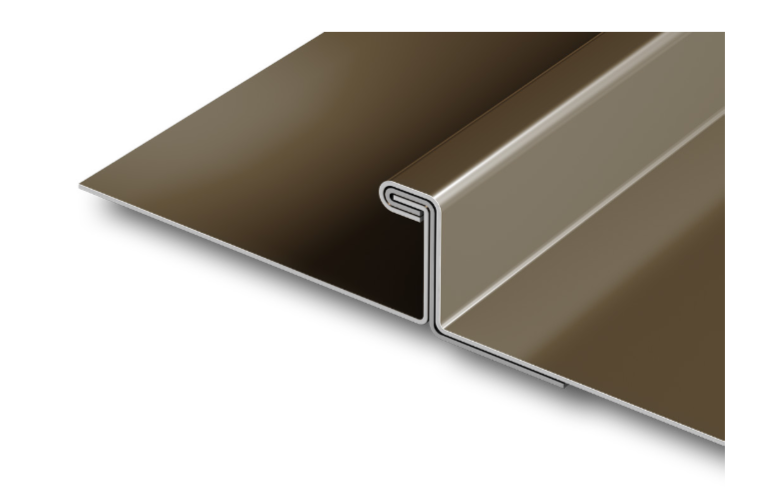

1.5” standing seam with snap lock system.
Seam Style

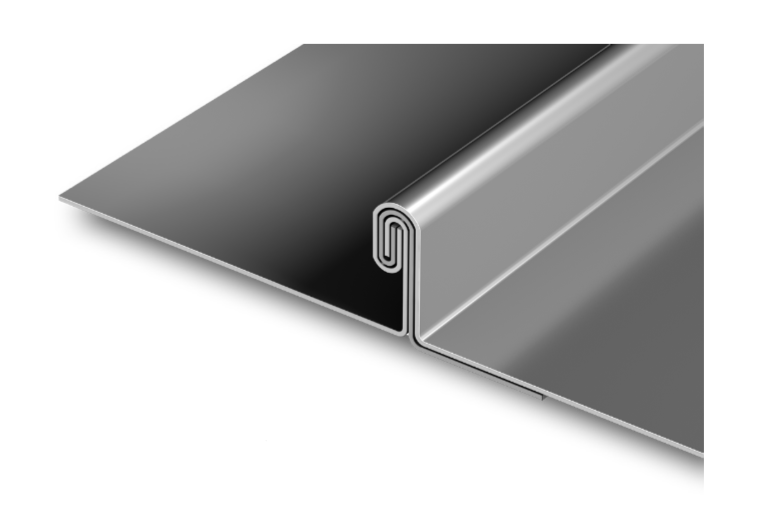

Panels may be mechanically seamed to 90° or 180°, depending on project uplift requirements.
Coating
Premium Kynar 500® (PVDF) finish ensures long-term color retention and resistance to weathering.
Substrate
- Standard: 24 GA Galvalume® steel
- Optional: .032 aluminum (availability may vary by order)
Details and Components Gallery
