Great For
WALLS
COMMERCIAL
The CM3-B&B (Board and Batten) wall panel system brings timeless style and modern versatility to both residential and commercial projects. With optional panel widths ranging from 10” to 16”, it creates clean vertical lines and dimensional depth that add character and sophistication to any façade.
Designed with concealed fasteners, the CM3-B&B offers a smooth, uninterrupted appearance while delivering exceptional durability. Whether used to achieve a traditional rustic charm or a sleek contemporary look, this system adapts seamlessly to diverse architectural designs.
With CM3 Metal’s advanced manufacturing and finishing options, architects and contractors can customize the CM3-B&B to meet unique project specifications while ensuring aesthetics never compromise performance.
Rendering & Profiles
No items found.
No items found.
Specifications & Details
Details
Installation
- Installs with concealed mechanical fasteners through pre-punched holes
- Designed for vertical wall applications only
Panel Lengths
- Maximum length for steel: 30’
- Maximum length for aluminum: 22’
Panel Dimensions
Available in 12” and 16” widths for versatile design applications

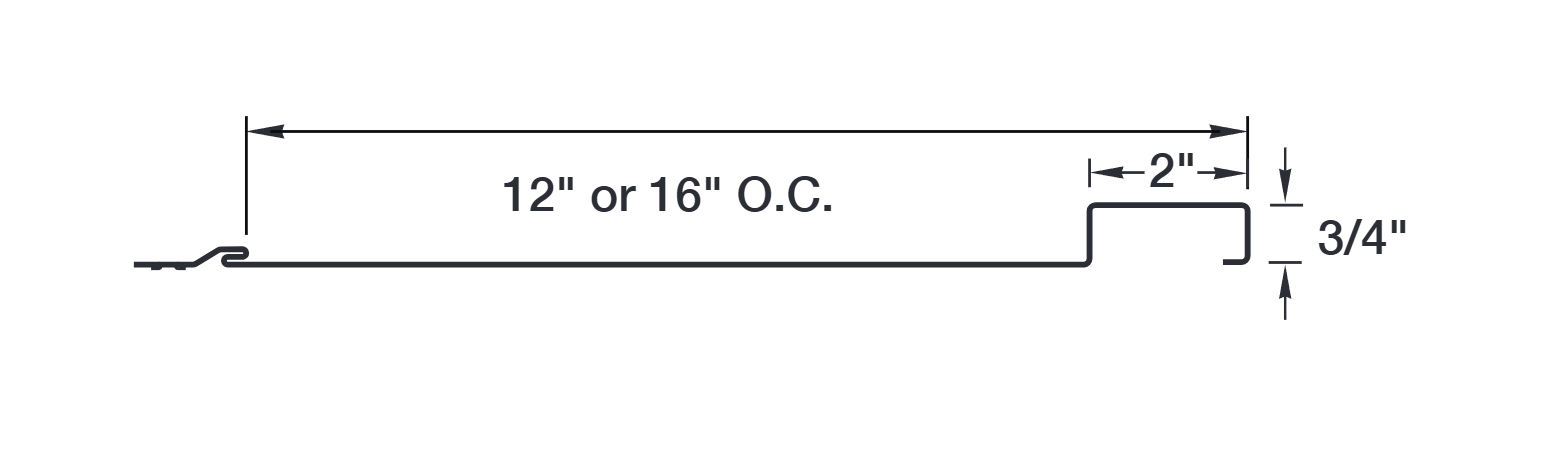

Batten Profile
Batten cap is 2” wide and ¾” deep across all panel widths
Panel Options

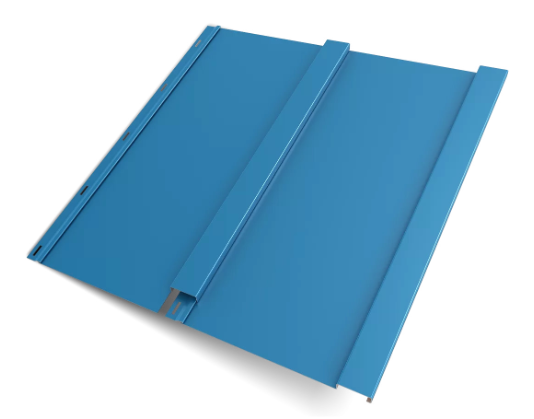

Panel Configurations
Vertical wall panel with batten design for a clean, architectural appearance
Coating
Premium paint finish for long-term weatherability and color retention
Substrate Options
- Steel (30’ max length)
- Aluminum (22’ max length)

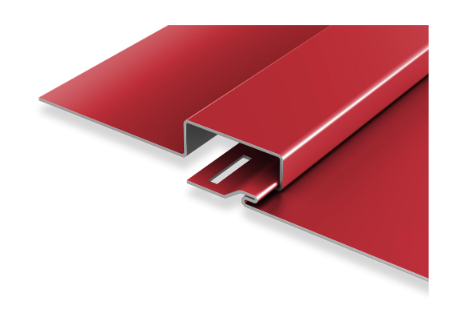

Fastening System
Concealed fastener installation through pre-punched holes for a secure and streamlined appearance
