CM3-FS

CM3-FS

Flush Soffit Panel Smooth

$ 0.00 USD
See Variants
No items found.

Great For

WALLS
COMMERCIAL

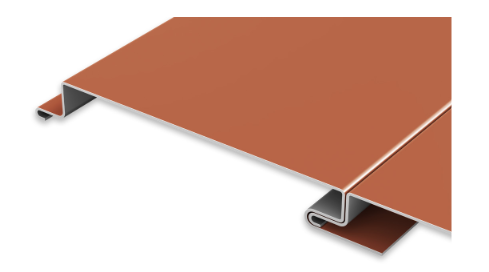

The CM3-FS Flush Soffit Panel delivers a smooth, modern appearance ideal for soffit, wall, and fascia applications. Designed with a concealed fastening system, this panel ensures a clean, streamlined look while maintaining reliable performance and durability. Optional features, such as pencil ribs for added strength and wind-resistant clips, provide versatility for both design and performance needs. Factory-formed and leveled, the CM3-FS is engineered for precision installation over solid substrates, making it a trusted choice for projects demanding aesthetics without sacrificing strength. With CM3 Metal’s advanced manufacturing and finishing options, architects and contractors can customize the CM3-FS to meet unique project specifications while ensuring aesthetics never compromise performance.

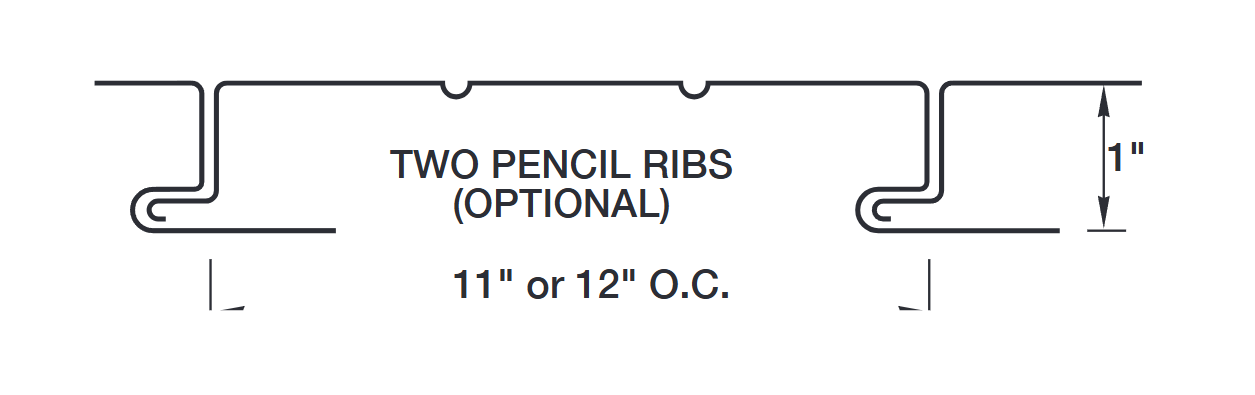

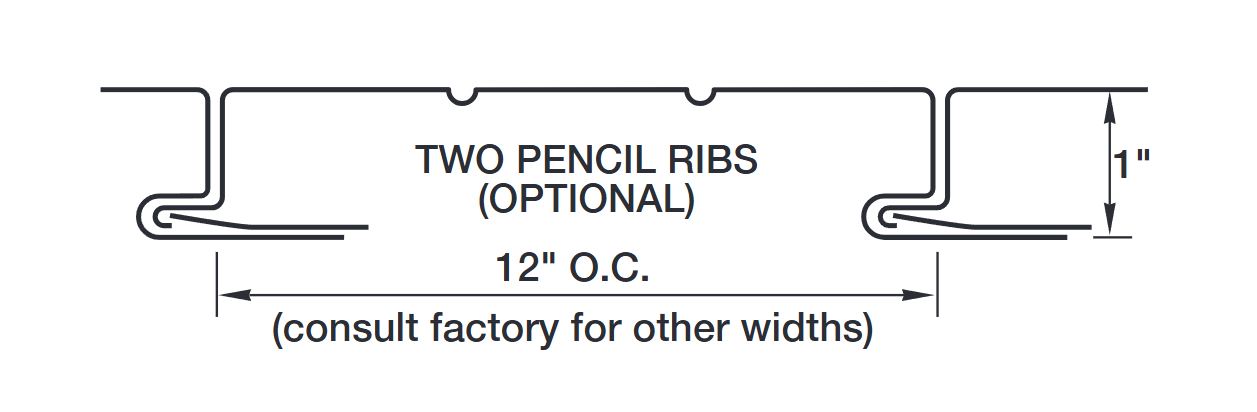

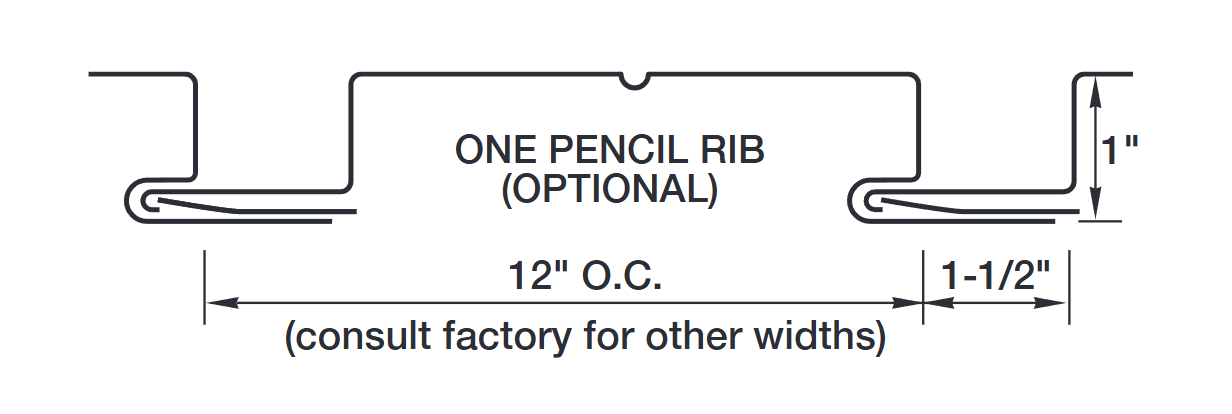

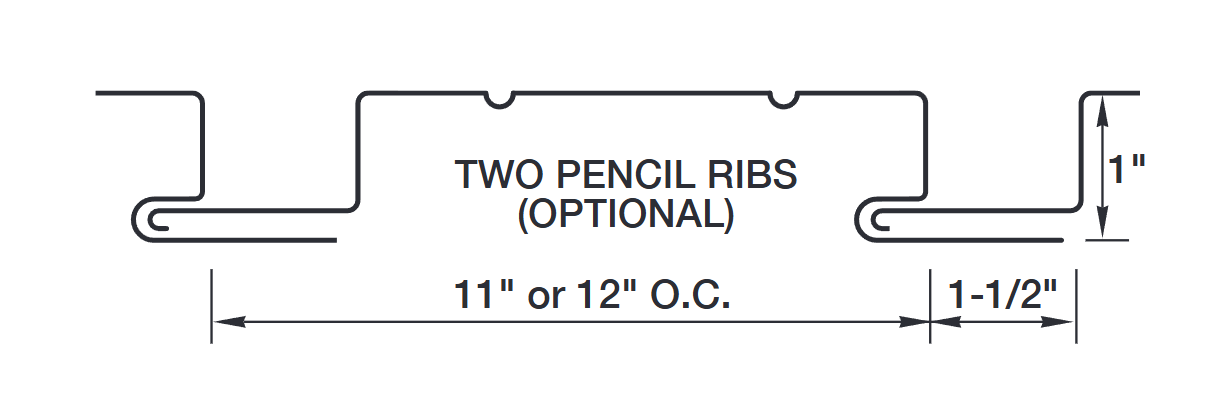

Rendering & Profiles

No items found.
No items found.

Specifications & Details

Details

Design

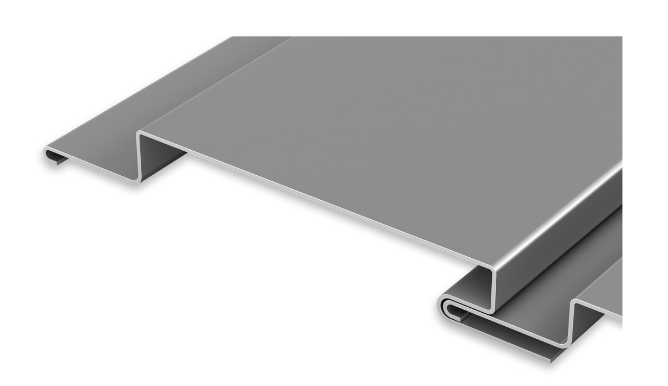

Flush soffit panels provide a flat, uniform appearance for soffit, wall, and fascia applications. The rounded interlock leg and concealed fastening system improve flush alignment and add structural strength.

Installation

  • Designed for installation over solid substrate with appropriate underlayment.
  • Can be used in limited applications over framing sections.
  • In windscreen applications, panels must be stitched through side joints for added stability.

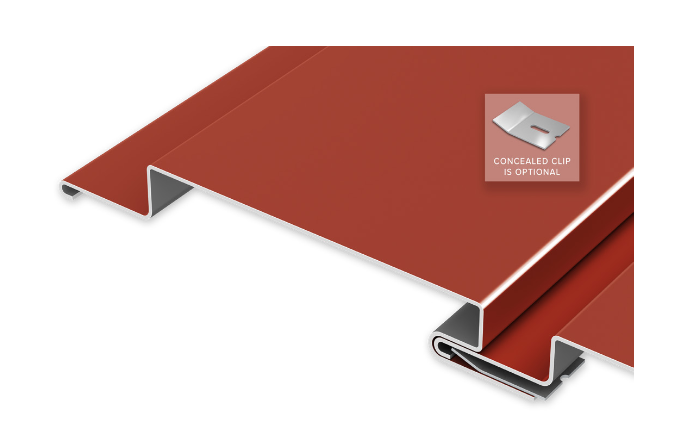

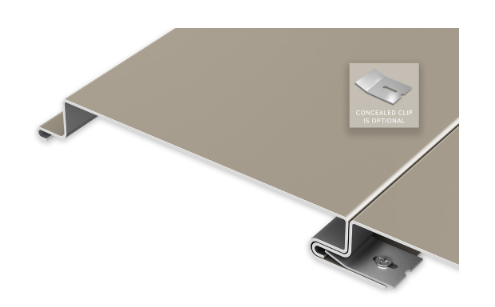

  • Optional concealed fastening clip available for higher wind resistance performance.

Ventilation

Available in vented configurations (beads, pencil ribs, or reveals) to allow air circulation while maintaining a clean soffit appearance.

Leveling & Fabrication

Precision roll-forming ensures panels are leveled for flatness, minimizing coil set, crowning, and edge wave. This produces a consistent flush appearance across all panels.

Trim & Flashing

Custom trim and flashing are fabricated by CM3 Metal or approved partners to ensure proper system integration and finish quality.

Warranty

35-year non-prorated finish warranty available.

Notes

Oil canning is a natural occurrence in metal panels and is not cause for panel rejection.

Panel Options

Variants Available

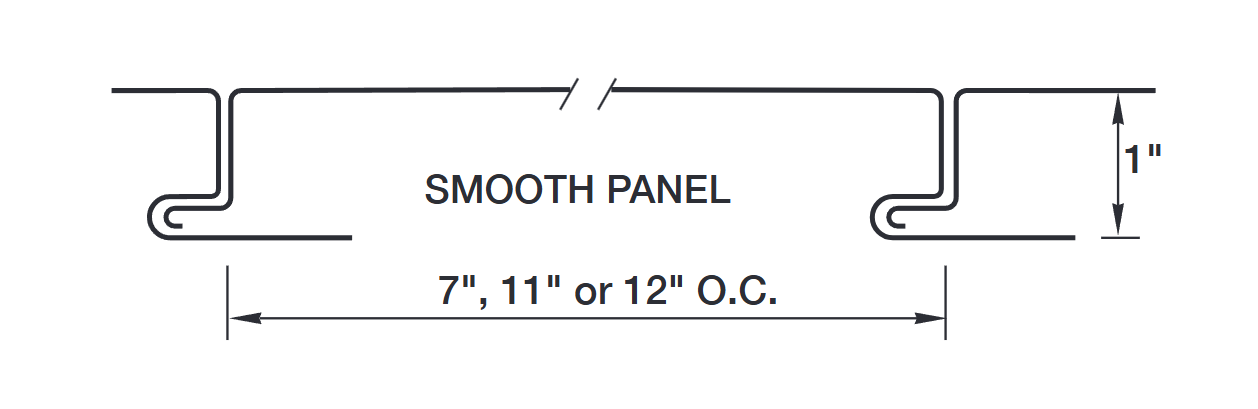

  • CM3-FS: Flush Soffit Panel Smooth
  • CM3-FSB: Flush Soffit Panel with 1” Wide Beads (1 or 2)

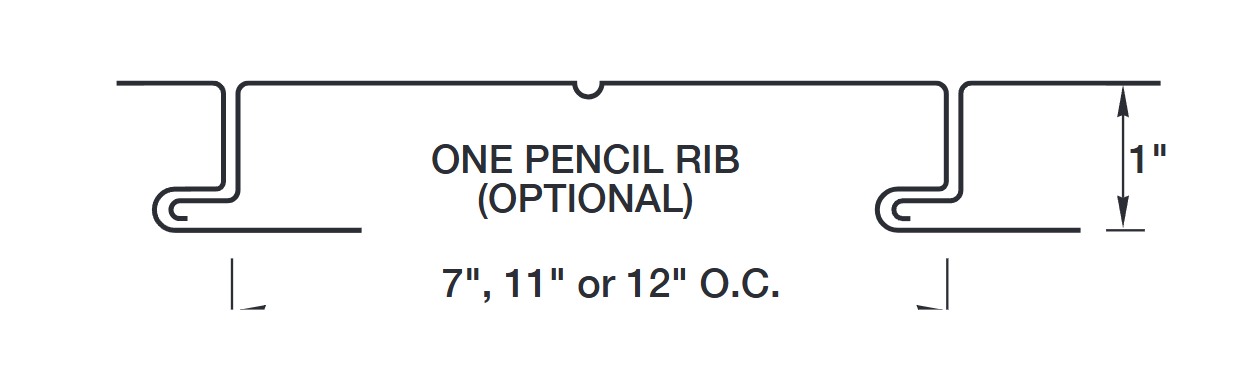

  • CM3-FSP: Flush Soffit Panel with Small Pencil (1 or 2)
  • CM3-FSAR: Flush Soffit Panel Reveal from .25” – 3”
  • CM3-FSBV: Vented Flush Soffit Panel with 1” Wide Beads (1 or 2)
  • CM3-FSPV: Vented Flush Soffit Panel with Small Pencil (1 or 2)
  • CM3-FSRV: Vented Flush Soffit Panel Reveal from .25” – 3”

Panel Configurations

Available in smooth, beaded, pencil rib, and reveal profiles, with optional venting for improved airflow.

Panel Lengths

Factory-formed to lengths between 4’ and 25’ to minimize field cutting.

Coating

Premium Kynar 500® (PVDF) finish for long-lasting color performance and weather resistance.

Substrate

  • Standard: 24 GA Galvalume® steel
  • Optional: 22 GA Galvalume® or aluminum (inquire for availability and lead times)

Details and Components Gallery

No items found.
No items found.
