Great For
WALLS
COMMERCIAL
The CM3-FW Flush Wall Panel delivers a sleek, flat appearance ideal for walls, fascia, and soffit applications. Designed with concealed fastening and optional pencil ribs, it combines modern aesthetics with enhanced strength and rigidity. Available in panel widths from 12” to 22”, the CM3-FW offers design flexibility for a wide range of architectural projects.
Factory-formed and precision-leveled, these panels are installed over solid substrates for a clean, uniform finish. Optional wind-resistant clips and trim packages add performance, making the CM3-FW a reliable choice in demanding environments. With CM3 Metal’s advanced manufacturing and finishing options, architects and contractors can customize the CM3-FW to meet unique project specifications while ensuring aesthetics never compromise performance.

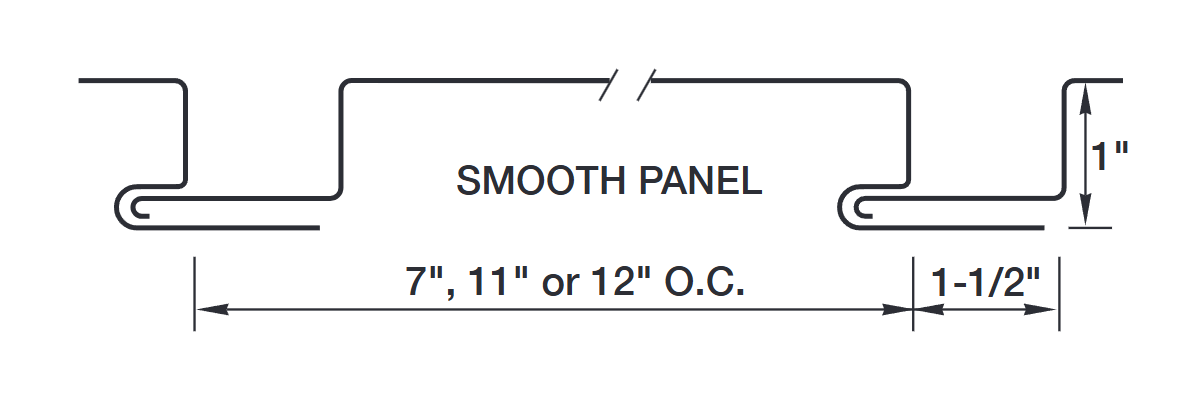

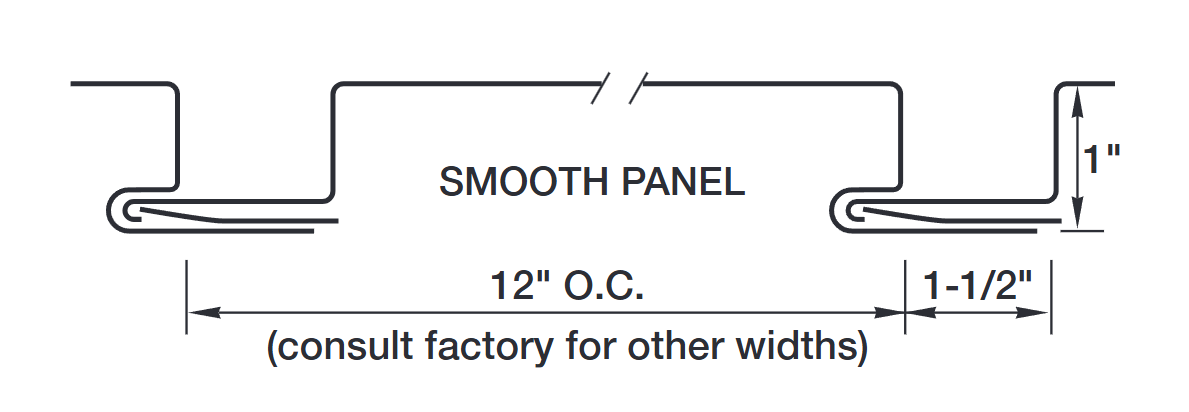

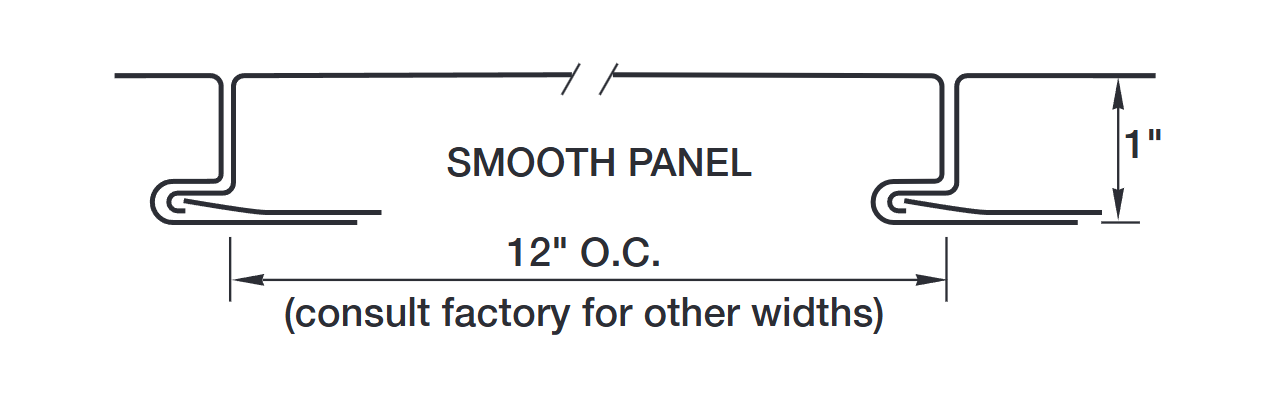

Rendering & Profiles
No items found.
No items found.
Specifications & Details
Details
Panel Design
- Leveled for superior flatness

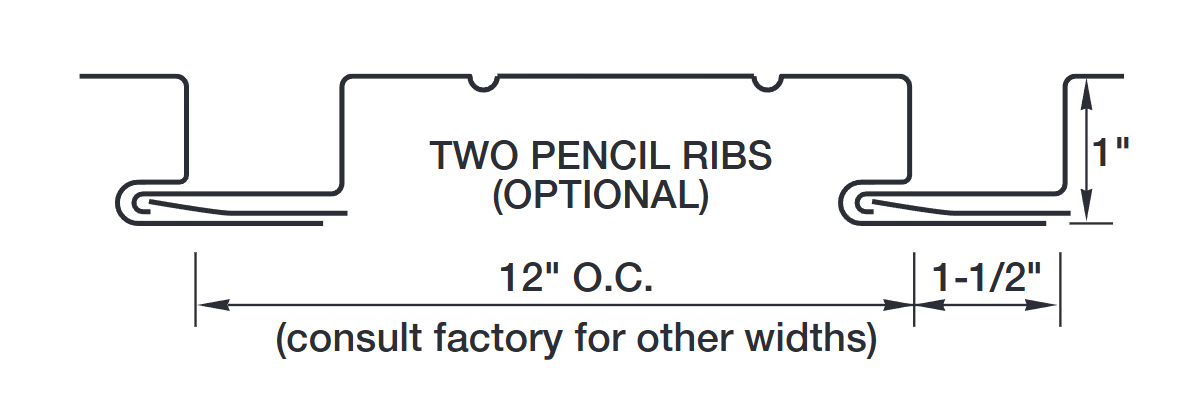

- Available with up to two pencil ribs for enhanced aesthetics
- Rounded interlock leg provides improved flush fit and clean lines
Panel Lengths
Available from 4’ to 25’ to accommodate a wide range of applications
Finish Warranty
35-year non-prorated finish warranty for long-term performance
Materials
- 48 stocked colors (24 gauge steel)
- 17 stocked colors (22 gauge steel)
- 34 stocked colors (.032 aluminum)
- 26 stocked colors (.040 aluminum)
- Galvalume Plus available
Panel Options
Panel Configurations
Flat panel with optional pencil ribs (up to two) for design flexibility
Coating
Premium Kynar 500® (PVDF) finish for exceptional color retention and long-term weather protection
Substrate Options
- Standard: 24 GA steel
- Optional: 22 GA steel (subject to minimums and lead times)
- Optional: .032 and .040 aluminum
- Galvalume Plus available
