Great For
WALLS
COMMERCIAL

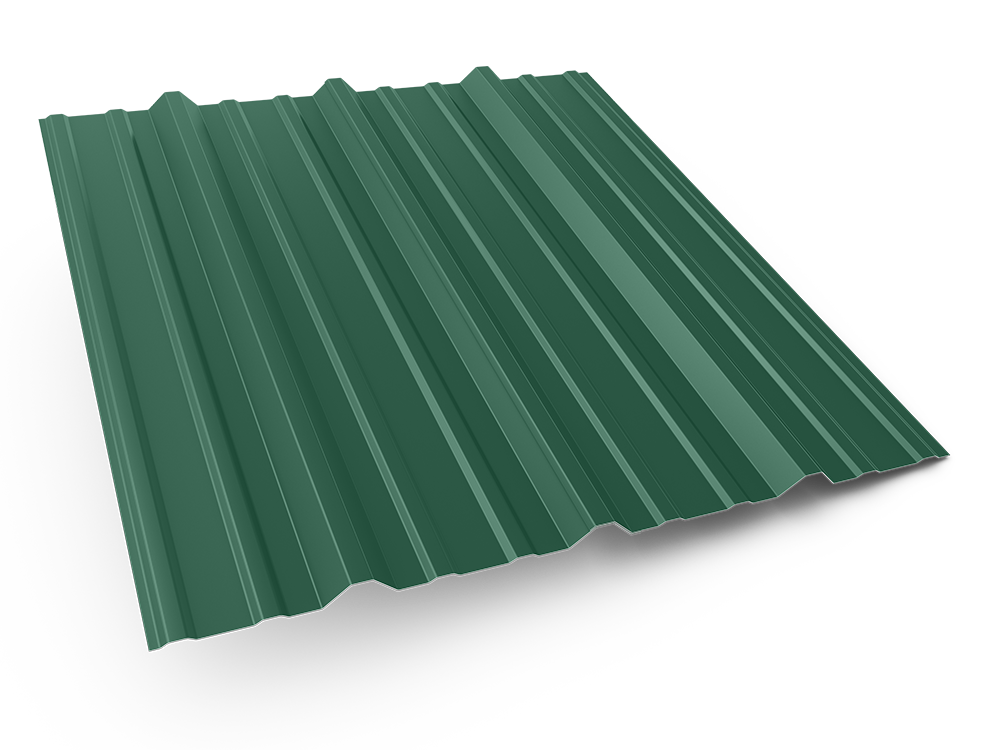

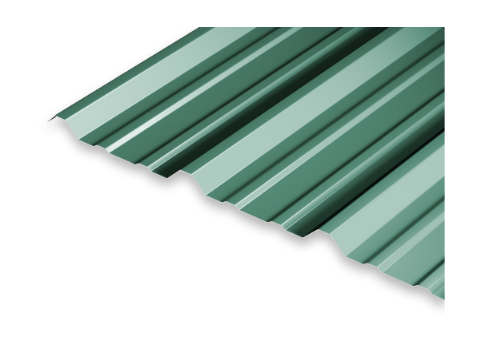

The CM3-PBR is a versatile 2" exposed fastener panel designed for both roof and wall applications, delivering exceptional strength and cost efficiency. With a 36" coverage width, this panel provides outstanding durability while maintaining a clean, practical appearance suited for industrial, agricultural, and commercial projects.
Engineered for performance and simplicity, the CM3-PBR offers quick installation and reliable weather protection across a wide range of substrates. Its rugged design ensures long-lasting performance, while multiple finish and color options make it easy to achieve the desired architectural look.
With CM3 Metal’s advanced manufacturing and finishing options, architects and contractors can customize the CM3-PBR to meet unique project specifications while ensuring aesthetics never compromise performance.

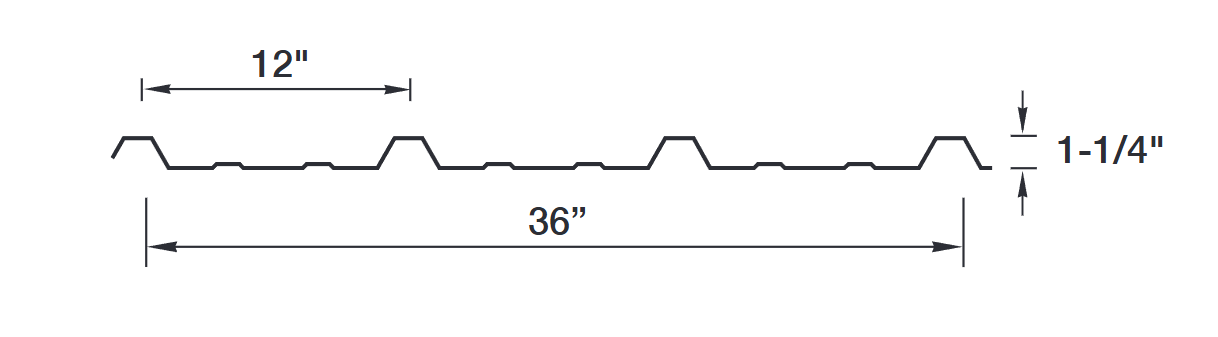

Rendering & Profiles
No items found.
No items found.
Specifications & Details
Details
Panel Lengths
- Panel lengths up to 30’ on steel and 22’ on aluminum
- Precut short lengths available (5’-0” minimum, 3’-0” on the M-42)
Matching Components
- Matching screws and rivets available
- Closure strips offered for complete installation
Finish Warranty
35-year non-prorated finish warranty for long-term performance and appearance
Materials
- 48 stocked colors (24 gauge steel)
- 17 stocked colors (22 gauge steel)
- 34 stocked colors (.032 aluminum)
- 26 stocked colors (.040 aluminum)
- 21 stocked colors (.050 aluminum)
- Galvalume Plus available
Panel Options
Panel Configurations
Available in multiple profiles with lengths and colors suited for a wide range of applications.
Coating
Premium Kynar 500® (PVDF) finish for exceptional color retention and weather resistance.
Substrate Options
- 24 GA steel (standard)
- 22 GA steel (optional, subject to minimums and lead times)
- .032, .040, and .050 aluminum (availability may vary)
- Galvalume Plus substrate also offered
